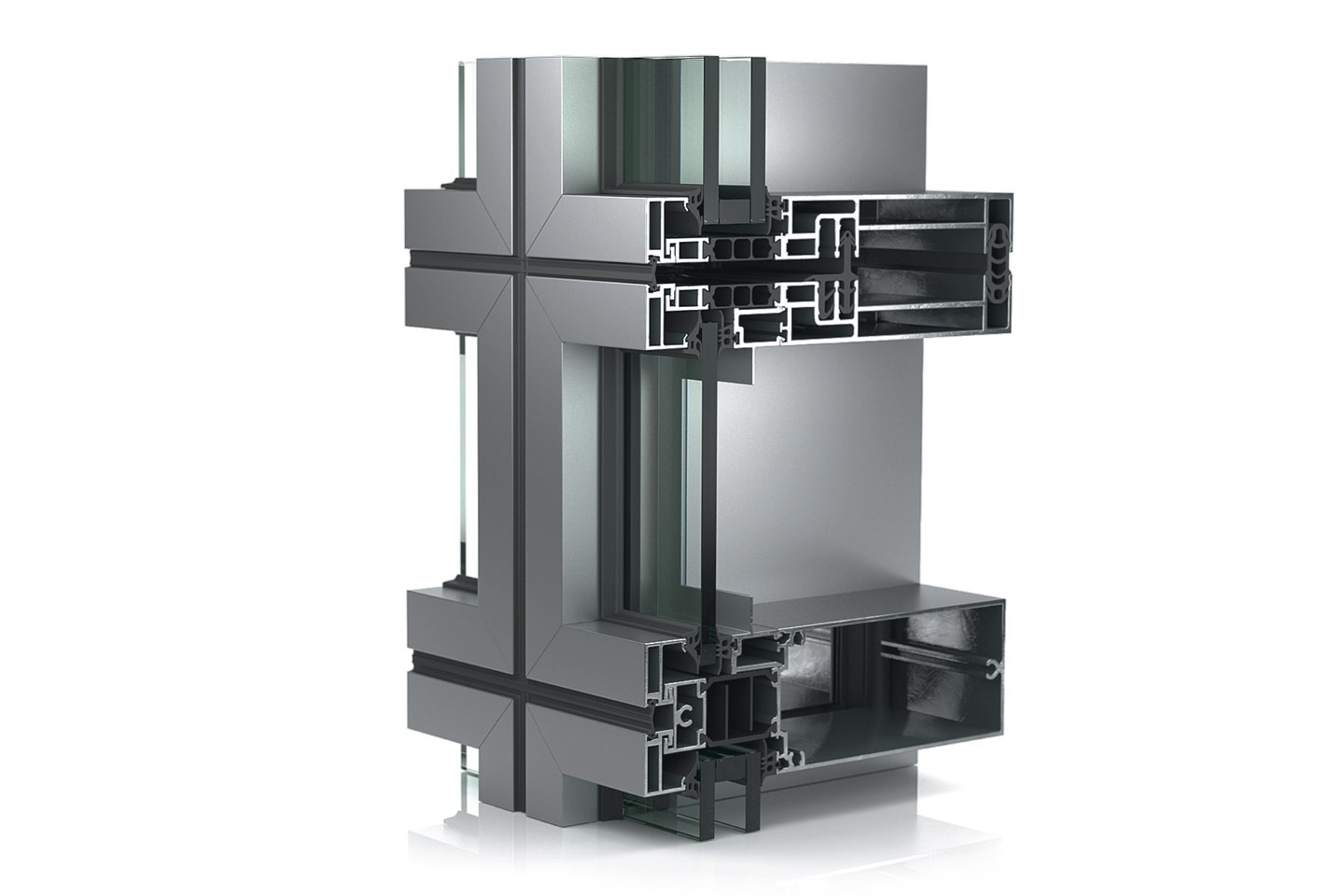

UNITIZED CURTAIN WALL
Description
This system was meant to be adaptable to any residential or commercial high-rise, with or without balconies. Typically, installing UCW on a building with balconies and/or variations in stack-joint elevations presents installation issues due to the availability of unique transitions and blind seals, which have the potential to degrade air and water resistance.
Features
- Rigorously tested to the most stringent specifications and provides high air/water and thermal performance
- Aesthetically pleasing look
- All thermal breaks are made from polyamide
- All gaskets are silicone for UV resistance and easy repair
- Wide range of infills available; metal panel, architectural screens, terra cotta, etc.
- High range of customization for aesthetics and performance
- Controlled installation with transition seals

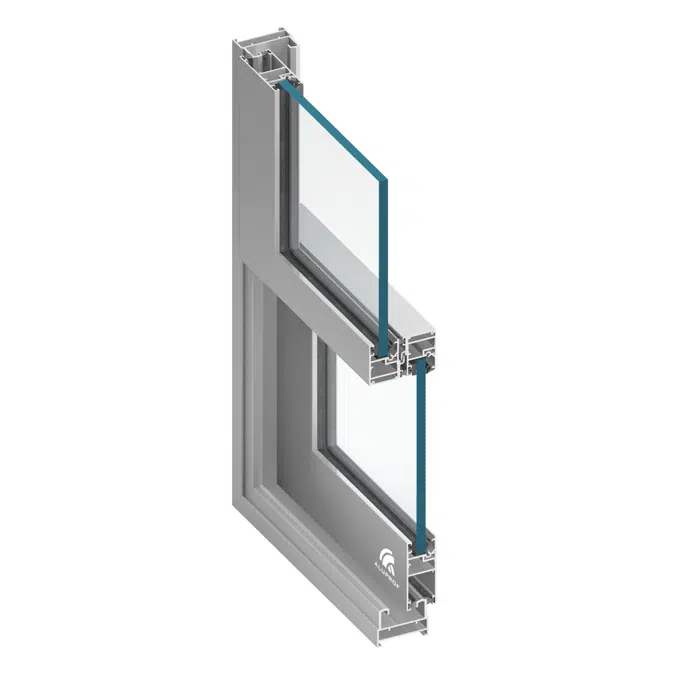

WINDOW WALL
Description
Next-generation window wall system designed to provide outstanding thermal performance at an affordable price. It is ideal for both mid-rise and high-rise residential developments. It has deeper structural elements to enable for wider spans and sleek frame lines for a modern appearance.
Features
- Double or Triple glazed up to 44mm
- Chambered polyamide thermal break
- Locking vertical connections
- Installs completely from the interior side
- Aesthetically pleasing look
- Multiple levels of Thermal and Acoustic upgrades
- Able to integrate a variety of architectural façade components (Metal Panels, Sunshades, Fins, Spandrel Glazing)

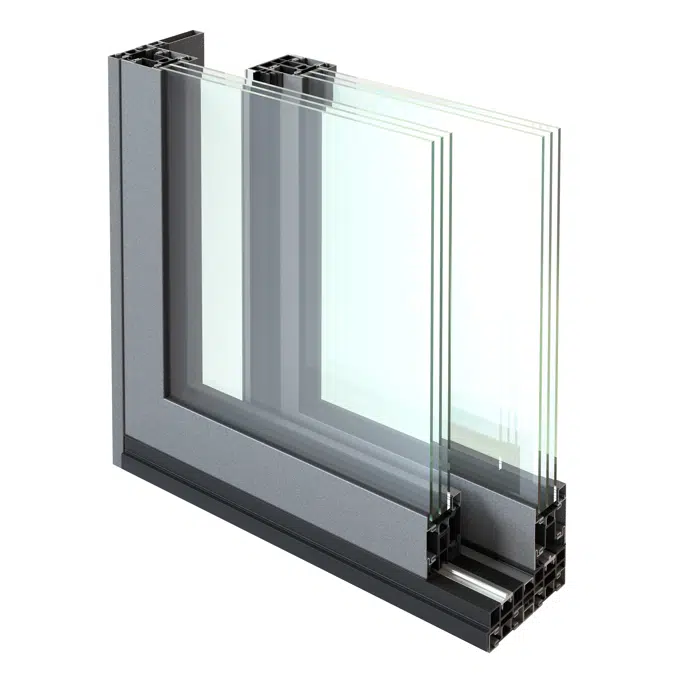

LIFT AND SLIDE DOOR
Description
Lift and slide doors provide greater water and air tightness while remaining user-friendly. Easy, silent glide and tangible multi-point locking, with great thermal and acoustic properties. It works flawlessly with all Siber Façade Systems. It is intended for high-rise installation and includes a stronger interlock connection and an enhanced water drainage system.
Features
- Double or Triple glazed up to 44mm
- Reinforced vertical interlock
- High volume drainage
- One-way air/water valves
- Dual thermal break frame design
- G-U Multi-Point lock hardware
- Multi-Track topology options

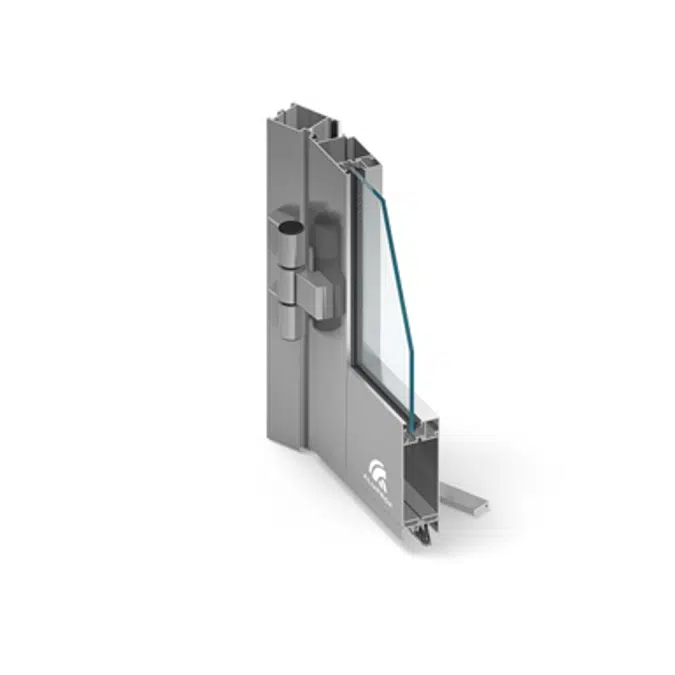

SWING DOOR
Description
Stand-alone or integrated into Siber Façade Systems, it provides exceptional weather resistance, thermal and acoustic insulation, while German-made (G-U) multi-latching hardware provides piece of mind with enchased security. Built for Canadian conditions, this device has three levels of silicone seals to assure maximum air/water tightness. The system has an overall depth of 75mm and is made up of three chambers with a 36mm thermal break. Double or triple glazed units as thick as 44mm can be installed. Thermal and acoustic parameters can be tuned to meet the exact requirements of your project using a variety of glass makeups and insulation infill options.
Features
- Double or triple glazed up to 44mm
- Multiple levels of Thermal and Acoustic upgrades
- G-U Multi-point lock hardware
- Heavy-duty, adjustable hinges with stainless steel spindle
- Accessibility Threshold options
- Inswing and Outswing options
